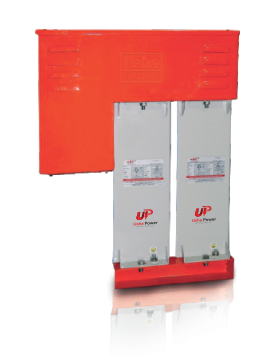

The use of double sided hazy film, vacuum drawing and impregnation with non toxic non- PCB bio degradable oil under very high vacuum ensures an electrically stable Capacitor with excellent partial discharge characteristics Film + Foil design with high grade steel tank.

Specification:

• Non Self Healing Type, IS: 13585(P-1)2012

Range:

• 5 to 50 kVAr in single unit and above in Bank +415/440/575/690/850/950 VAC. 50 Hz. +3 Ph, Delta Connected

Features:

• Hazy all Polypropylene Film +Foil Type + Non self healing Type
• Operated at high temperature
• Static Indoor type and oil filled, box type, (CRCA Enclosure) Mild Steel
• 100% Oil filled Non P.C.B Non Toxic Oil
• Highest inrush current withstanding capacity + Strongly recommended to use at extreme high temperature environment
• 99.99% Pure Aluminum Foil + Suitable for odd Harmonics load + Weather Proof Powder coating + Maintenance Free + Explosion Proof
• Expected Life of Capacitors 12-15 Years + Losses < 0.2/5 watts KVAr
• No drifting in KVAr value upto limited period + No Oil Leakage and Maintenance free

Application:

• Fixed & Automatic P.F. Correction with Tuned & Detuned Filters
• Indoor use filter applications
• It is recommended to use at extreme high temperature environment like Foundries & Steel Industries, Cement Industries, Textile Industries.
